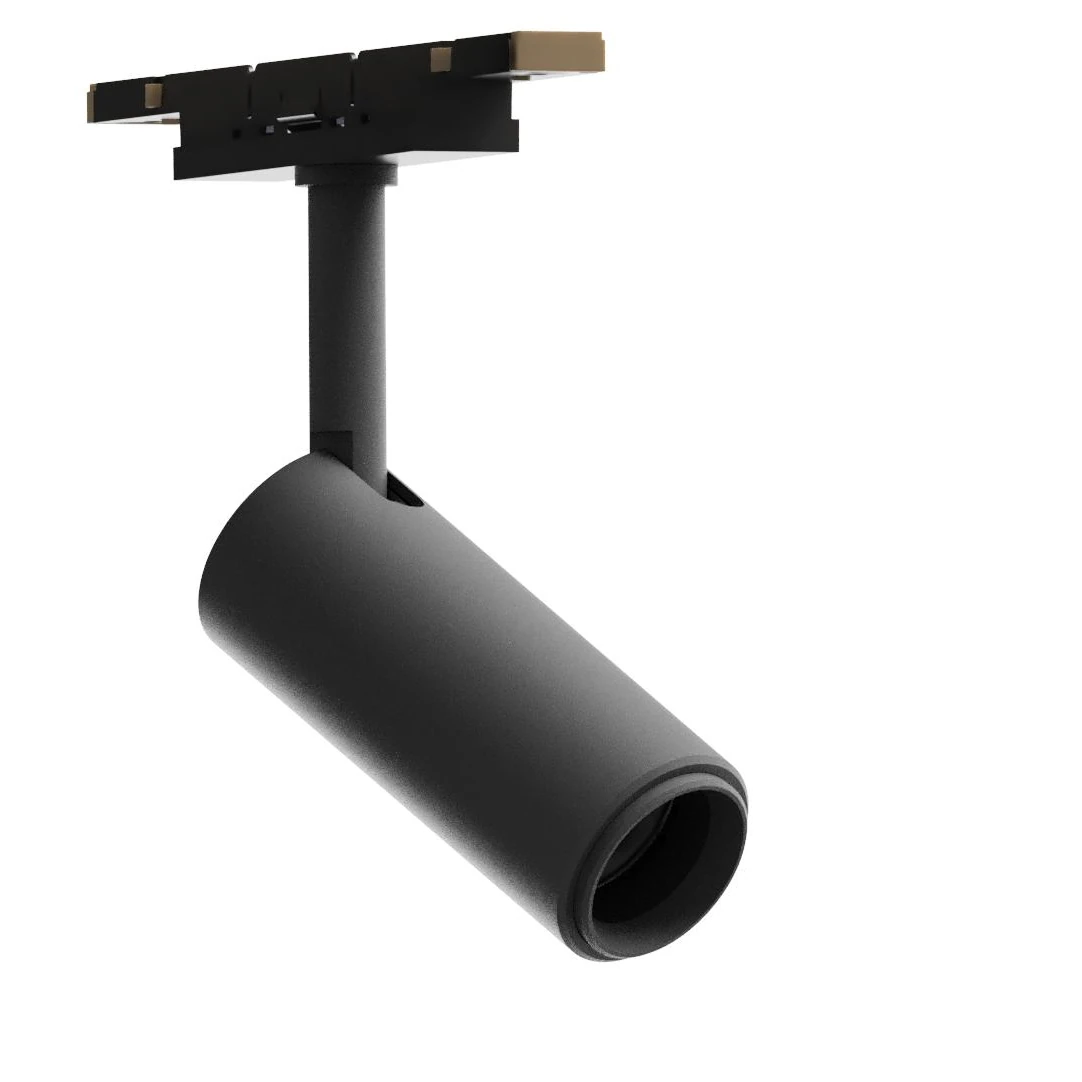

The M1.1 48V track spotlight (3.5W) radically evolves the concept of track lighting systems. Thanks to its innovative mechanical joint, the fixture guarantees structural stability and electrical continuity far superior to standard magnetic systems. Developed in extremely compact dimensions of just 26x80 mm, the device integrates precision optics engineered to deliver high luminous flux while maintaining an optimal color rendering index (CRI>85). M1.1 thus combines excellent technical performance, maximum long-term operating reliability, and a refined minimal design, making it ideal for accent lighting in prestigious exhibition and residential spaces.
| SKU / ID | 0410 |
| Size | M1.1 -M |
| Dimensions | D36 |
| Power | 6.5 W |
| Power supply | 48 Vdc |
| IP / Insulation Class | IP20 |
| Lifetime | 50.000 h |
| Photobiological risk | RG2 · moderate risk (IEC TR 62778): do not stare at the light source |
| Light source (LED) | Replaceable by a qualified person · repair service at ACSE headquarters |
| Driver (control gear) | Replaceable by a qualified person |
Data in accordance with Regulations (EU) 2019/2020 and 2019/2015, as amended by Regulations (EU) 2021/341 and 2021/340.
Description. LED luminaire M1.1 Xs, for indoor accent lighting. Designed and manufactured in Italy by ACSE.
Body and finishes. Body, finish Black. Available finishes: Black, Gold, White, Grey, Corten. Dimensions D36.
Light source. High-efficiency LED source of 6.5 W, colour temperature 2700 K, CRI , LED flux lm. Available versions: 2700 K, lm, CRI ; 3000 K, lm, CRI ; 4000 K, lm, CRI.
Optics. Optic in high-quality optical polymer, beam angle ~14. Available optics: ~14 (efficiency 81%); ~25 (efficiency 80%); ~35 (efficiency 83%); ~55 (efficiency 87%).
Electrical data and protection. Power supply 48 Vdc, insulation class III, protection rating IP20, UGR <19, lifetime 50.000 h. Photobiological risk group RG2 (EN 62471). CE marked.
Ordering. Order code: 0410-2700-~14-NE.
