Bloom

SKU 0520 W 3 W IP IP67 H 50.000 h CL III
Bloom

3D Optical Simulator

Distance to Target 2.0 m
Center Illuminance 0 Lux
Ø Main Spot (Beam) 0.00 m
Ø Outer Halo (Field Width) 0.00 m

Photometric curve M

Luminous intensity distribution from the IES/LDT file of the selected optic.

10002000300040000°30°60°90°C0-C180C90-C270cd/klm

Available Accessories

No accessories available for this lighting system.

Description

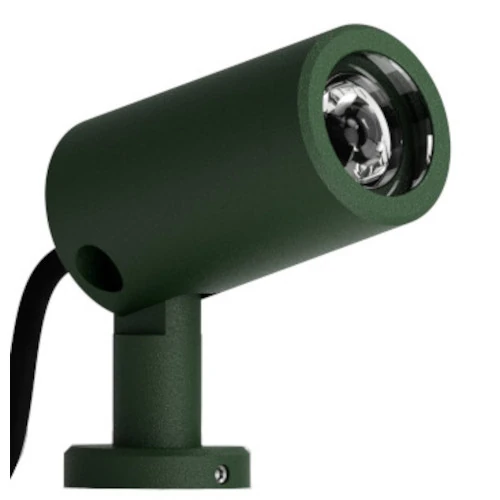

A clean beam that reaches exactly where you aim it. Bloom is an outdoor LED spotlight in RAL-painted stainless steel, rated IP67. At 3 W and 24 Vdc it delivers 143.2 lm at 3000 K, with CRI>90 to render colors as they are. Three polymer optics define the shape of the light: SS with 13° beam and 29° field, M with 31° beam and 50° field, OVAL 46x15 for an elongated cut. Insulation class III, LEDs with a 50,000 h lifetime, CE marking. The outdoor spotlight is available in the RAL color the project requires.

Technical Specifications

SKU / ID 0520
Dimensions Ø28
Power 3 W
Power supply 24 Vdc
IP / Insulation Class IP67
Lifetime 50.000 h

Advanced Configuration

RAL
My color · the product in your colour
3000K 143.2 lm CRI >90
M° 31° beam
OVALE° 46x15° beam
SS° 13° beam
Commercial Part Number
0520-3000-M-RA
Specification Text

Description. LED luminaire Bloom, for outdoor lighting. Designed and manufactured in Italy by ACSE.

Body and finishes. Body, finish RAL. Available finishes: RAL; other RAL colours on request. Dimensions Ø28.

Light source. High-efficiency LED source of 3 W, colour temperature 3000 K, CRI >90, LED flux 143.2 lm.

Optics. Optic in high-quality optical polymer, beam angle M. Available optics: M (efficiency 76.5%); OVALE (efficiency 61.8%); SS (efficiency 79.3%).

Electrical data and protection. Power supply 24 Vdc, insulation class III, protection rating IP67, lifetime 50.000 h. CE marked.

Ordering. Order code: 0520-3000-M-RA.
